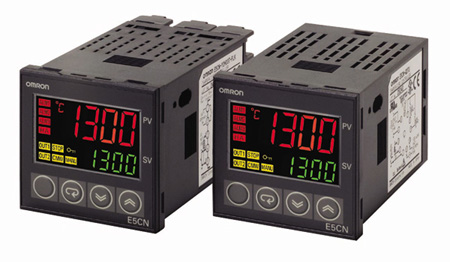

Advanced control E5CN

Code: E5CN

• Display 3 color change, LED 11 bar

• There may be two control output and alarm output or 3, the output transfer, simple 2-stepprogramming, USB port

Common type (input temperature variety, relay outputs 3A, 250V AC source, output warning 1A):-E5CN-RT/R2T (2 early warning)

• E5CN-RMT-500

• E5CN-R2MT-500 (with 2 early warning)

• E53-CNH03N2 (RS-485 communication module with the error function fired off 3 phasewiring, damaged SSR)

• Dimensions: 48x48 (mm)

• The level of accuracy displayed doubled compared with the old (pre 1/08)

• Method 2-PID control high

• Range of operation:-2000C to 1800 ° C

• Support multiple temperature inputs (selected by switch)

• Supports analog inputs (E5CN-RML/R2ML-500)

• Supports wireless alarm fired off three-phase and have the output manual (manual control)
