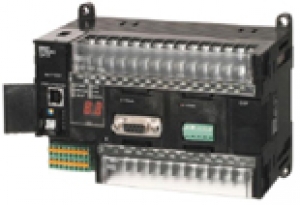

CP1H - Loại Compact PLC cao cấp (All-In-One)

Code: CP1H

CJ1-based design of advanced systems and expand to 320 digital I / O, 34 analogue I / O

     Available to 40 I / O, can connect to seven expansion modules CPM1A and CJ1 two modules, which supports high-end connectivity of the CJ1 (Profibus, Controller Link, Ethernet, CompoBusS / D ...).

     USB programming port, two COM ports support RS232, 485 (through converter)

      Built-in analogue: 4 on, 2 out (CP1H-XA40 *) LED display of information 2, 8 interrupt inputs

     Input and high-speed pulse output: 100kHz or 1MHz (CP1H-Y); around the 4 axis control

     Serial Link allows PC connection 9 CPU (both with CJ1M) through the COM port

     Modbus-RTU Easy Master easy connection to the inverter

     Programming support FB, ST, high-order PID (auto tuning), floating point, trigonometriccalculations, using CX-Programmer V6.1 ...
